Description

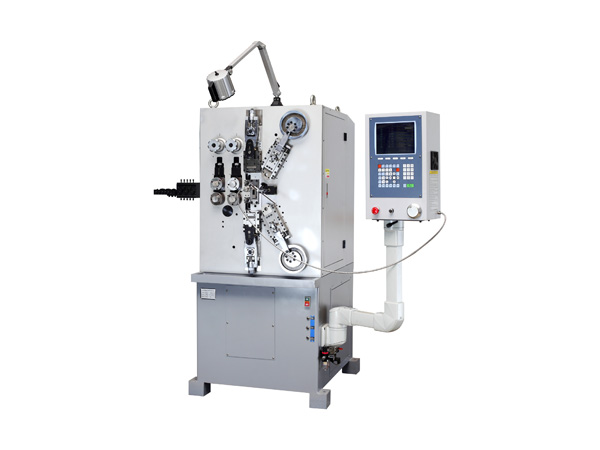

KCT-826 8 Axis CNC High-speed spring coiling machine, is my company in recent years to market success and applied a new eight axis computer spring machine, processing line with φ1.0-3.0mm ( in diameter oil quenched steel wire for reference ), mainly suitable for processing all kinds of precision compression spring, torsion spring and simple line type products for example, wave spring, pressure spring and pagoda spring etc..
Parameters
| 機 型 | Model | KCT-826 |
| 軸 數(shù) | Axis Count | 8 軸 |
| 加工線徑 | Wire Size Range | φ1.0-3.0mm |
| 最大彈簧外徑 | Max Outside Diameter | φ70mm |
| 最大彈簧螺距 | Max Pitch Of Spring | 45mm |
| 最大送線速度 | Max Feeding Speed | 280m/min |
| 旋繞比 | Spring Index | 3 |
| 送線輪組數(shù) | Wire Feeding Wheel Count | 2 pairs（組） |
| 送線伺服電機 | Feeding Motor Yasukawa SGMGV-44A | 2.9kw |
| 切刀伺服電機 | Cutter Motor Yasukawa SGMGV-09V | 1.3kw*2 |
| 凸輪伺服電機 | Cam Motor Yasukawa SGMJV-08A | 0.85kw*2 |
| 螺距伺服電機 | Pitch Motor Yasukawa SGMJV-08A | 1.0kw |
| 芯軸上下移動電機 | Mandrel Moving Up-down Servo Motor | 1.0kw |
| 退芯伺服電機 | Mandrel Return Servo Motor | 0.75kw |
| 機器尺寸 | Dimension(LxWxH) | 1000x1500x1850mm |
| 機器重量 | Weight | 1200kg |
| 電 源 | Power AC | 3-380VAC 50HZ |
Our company's KCT-826 8 Axis CNC High-speed spring coiling machine mainly imported from Japan Yaskawa servo motor and Taiwan computer Windows7 control system, the shaft can operate independently or synchronous operation. The company's design team has made great reform in innovation and improvement, and has realized the man-machine dialogue truly, has one minute spring molding, the production speed is fast, the precision is high, the noise is low, the debugging is more convenient. KCT-826 computer compression spring machine can realize the function of cutting, cutting and swing cutting in different angles, and also has the function of high-definition camera inspection.
